High Quality Strain Gauge Beam Load Cell for Hopper/ Tank Scales

High Quality Strain Gauge Beam Load Cell for Hopper/ Tank Scales

รายละเอียดสินค้า:
สถานที่กำเนิด: จีน
ชื่อแบรนด์: RUIJIA
ได้รับการรับรอง: CE
หมายเลขรุ่น: อาร์.เจ
ข้อมูลรายละเอียด
สถานที่กำเนิด:
จีน
ชื่อแบรนด์:
RUIJIA
ได้รับการรับรอง:
CE
หมายเลขรุ่น:
อาร์.เจ
วัสดุ:
เหล็กอัลลอยด์
ความจุ:
6T-10T
ความไวเอาต์พุต:
2.0 ± 0.05mV/V
ความดันที่แนะนํา:
5 ~ 15V
ยอดคงเหลือเป็นศูนย์:
<± 1.0 %fs
อุณหภูมิการทำงาน:
-20 ~ +80 ° C
เน้น:

High Light

เน้น:

strain gauge beam load cell

,

hopper tank scales load cell

,

shear beam load cell with warranty

ข้อมูลการค้า
จำนวนสั่งซื้อขั้นต่ำ:
1
ราคา:
USD105 ~115/piece
รายละเอียดการบรรจุ:
บรรจุภัณฑ์ส่งออกมาตรฐาน
เวลาการส่งมอบ:
5-8 วันทำงาน
เงื่อนไขการชำระเงิน:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
สามารถในการผลิต:
1,000 ชิ้น/ชิ้นต่อเดือน
คําอธิบายสินค้า

High Quality Strain Gauge Beam Load Cell for Hopper/ Tank Scales

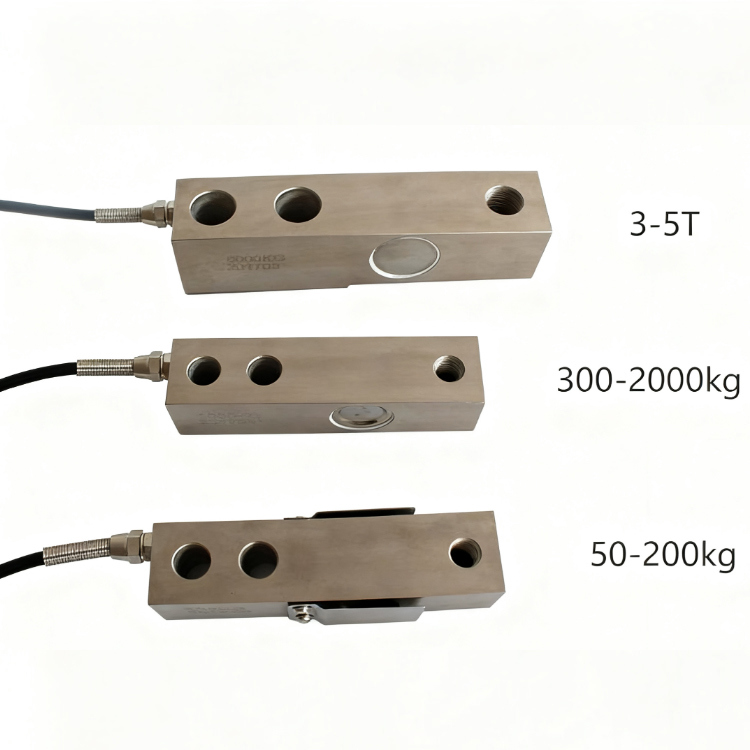

High Quality Strain Gauge Beam Load Cell for Hopper/ Tank Scales 0

Product features
1.Wide range of capacities from 0 to 10T
2.Alloy steel construction
3.Environmental Protection IP65 with complete hermetic sealing
4.Calibration in mV/V Low profile design
5.Low profile height and high structural strength, and can be used for bearing and measuring various tensile and compressive forces.
6.Dust-proof seal, wide range, high precision, stable and reliable performance, convenient installation and use, etc.
7.It is suitable for industrial automatic measurement and control systems for various force measurement and weighing such as electronic scales and weighing instruments.
Parameters Table
Measuring range
0-10T
Material
Alloy steel/Stainless steel
Output sensitivity
2.0±0.05mV/V
Impedance
350Ω
Zero output
±1%F.S.
Insulance
≥5000MΩ/100VDC
Non-linear
0.03%F.S.
Operating Voltage Range
5-15V
Hysteresis
0.03%F.S.
Operating Temp Range
-20-80℃
Repeatability
0.03%F.S.
Safe overload
150%
Creep(30min)
0.03%F.S.
Maximum Overload
200%
Temp.effect on output
0.03% F.S. / 10ºC
Cable size
Φ5x3m
Temp.effect on zero
0.05% F.S. / 10ºC
Cable ultimate pull
10kg
Response frequency
10kHz






High Quality Strain Gauge Beam Load Cell for Hopper/ Tank Scales 1

Industry Applications

Cantilever beam weighing sensor has the characteristics of simple structure, convenient installation, reliable use, long service life and high cost performance.

It is mainly used for plattform scales, Floor scales, Silo, Hopper and Tank Scales and weighing systems, Pallet truck weighing, Big-Bag Scales, Filling and Bagging Machines, Force and Torque Measurements in the test machines and Industrial Automation.
High Quality Strain Gauge Beam Load Cell for Hopper/ Tank Scales 2
Overview
Cantilever beam weighing sensor, also known as shear beam weighing sensor, is mostly rectangular in shape, and the strain zone is in the middle of the sensor. Cantilever beam weighing sensor has the characteristics of simple structure, convenient installation, reliable use, long service life and high cost performance. Cantilever beam weighing sensors have been widely used in truck scales,main axle load meters, small scale and platform scales ...........
