| สถานที่กำเนิด: | จีน |
| ชื่อแบรนด์: | RUIJIA |
| ได้รับการรับรอง: | CE |
| หมายเลขรุ่น: | อาร์.เจ |

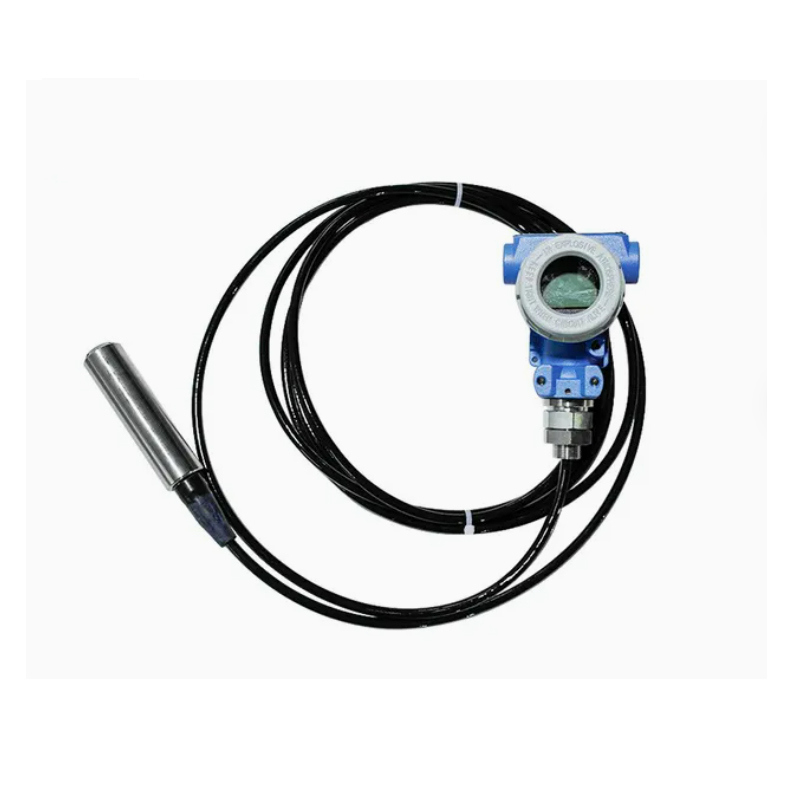

1.Excellent impact resistance, overload resistance,vibration resistance and corrosion resistance
2.Moisture proof anti-condensation, anti-leakage,protection class lP68
3.Efficient lightning protection, strong anti-radiation and electromagnetic interference protection.
4.Suitable for measuring liquid media with good fluidity.
5.High precision,high frequency response, long-termstability
|
Measure range
|
0~1~300m H2O
|
|
Working temperature
|
-20 ºC ~ 80ºC
|
|
Temperature compensation
|
-10~70ºC
|
|
Storage temperature
|
-40~80ºC
|
|
Over load pressure
|
2times of measure range
|
|
The accuracy class
|
Class 0.1% FS, the basic error is ±0.1%;
Class 0.2% FS, the basic error is ±0.2%;
Class 0.5% FS, the basic error is ±0.5%.
|
|
Hot zero drift
|
When the condition temperature is out of the working temperature range, the transmitter's zero drift value can be not bigger than 0.03%FS/ ºC.
|
|
Hot sensitivity drift
|
With high accuracy, good stability; The sensor can realize temperature compensation in temperature 0~65ºC, and through circuit compensation, it can eliminate the effects which because of temperature drift.
|
|
Insulation resistance
|
During the defined temperature range, the insulation resistance value between the transmitter ends and ground can't be less than 20MΩ/250V.
|
|
Explosion-proof performance
|
Exia II CT4
|
|
Output
|
4-20mA (2-wire), (0~10/20)mA; (0~5)V, (1~5)V,(0~10)V(3-wire), With Modbus communication (Modbus Serial RS485); 4~20mA+Hart
|
|
Power supply
|
12~36 VDC (nominal voltage 24VDC)
|
|
Material
|
Shell material: Alloy Aluminum; O ring: VITON; Membrane:316L stainless steel
|
|
Protection class
|
IP68(pressure sensor), IP65(Junction box transmitter)
|
