| สถานที่กำเนิด: | จีน |
| ชื่อแบรนด์: | RJ |
| ได้รับการรับรอง: | CE/ROSE |
| หมายเลขรุ่น: | อาร์.เจ |
|

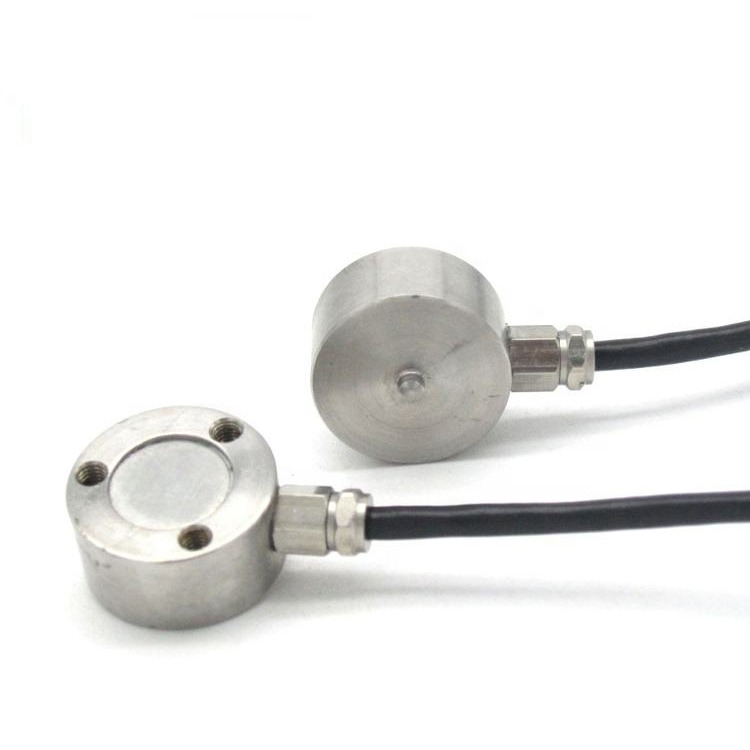

5kg-500kg |
|
|
Sensitivity |
0.5~1.5 mv/V |
|
Precision |
0.5 %F·S |
|
Creep |
±0.2 %F·S/30min |
|
Non-linearity |
±0.5 %F·S |
|
Hysteresis error |
±0.5 %F·S |
|
Repeatability |
±0.5 %F·S |
|
Zero temperature coefficient |
±0.2 %F·S/10℃ |
|
Temperature Effect On Output |
±0.2 %F·S/10℃ |
|
Input resistance |
500 ± 20 Ω |
|
Output resistance |
500 ± 20 Ω |
|
Insulation resistance |
≥ 2000 MΩ |
|
Excitation voltage |
5 ~ 15 VDC |
|
Working temp. range |
-20 ~ 70℃ |
|
Safety overload |
150 %F·S |
|
Sealing grade |
IP67 |
|
Material |
Stainless steel |
|
Wiring |
Red: EXC+, Green: EXC- , Yellow: SIG+, White: SIG- |
Packing & Transport
FAQ
Q: How can I get the quotation?
Please send your inquiry to us.
Click 'Contact Supplier' icon which is on the right-side or write down your requirement at the bottom of this page.
Q: What detailed information do I need to provide if I want to place an order?
